FastMCP Bearer Token Authentication: A Technical Deep Dive

FastMCP Bearer Token Authentication: A Technical Deep Dive

Introduction

FastMCP (Model Context Protocol) is a powerful framework for building AI agents and tools that can communicate seamlessly with various AI models and services. One of its key features is robust authentication support, particularly through JWT Bearer tokens. In this technical deep dive, we’ll explore how to implement secure authentication in FastMCP applications using RSA key pairs and JWT tokens.

Background: Why Authentication Matters in MCP

The Model Context Protocol (MCP) enables AI agents to access external tools, resources, and data sources. In production environments, these connections must be secure to prevent unauthorized access to sensitive data and tools. FastMCP’s authentication system provides:

Token-based Security: JWT tokens with configurable expiration and scopes
Asymmetric Encryption: RSA key pairs for secure token signing and validation
Flexible Transport: Support for both HTTP streamable and SSE (Server-Sent Events) modes
Scope-based Access Control: Fine-grained permissions for different operations

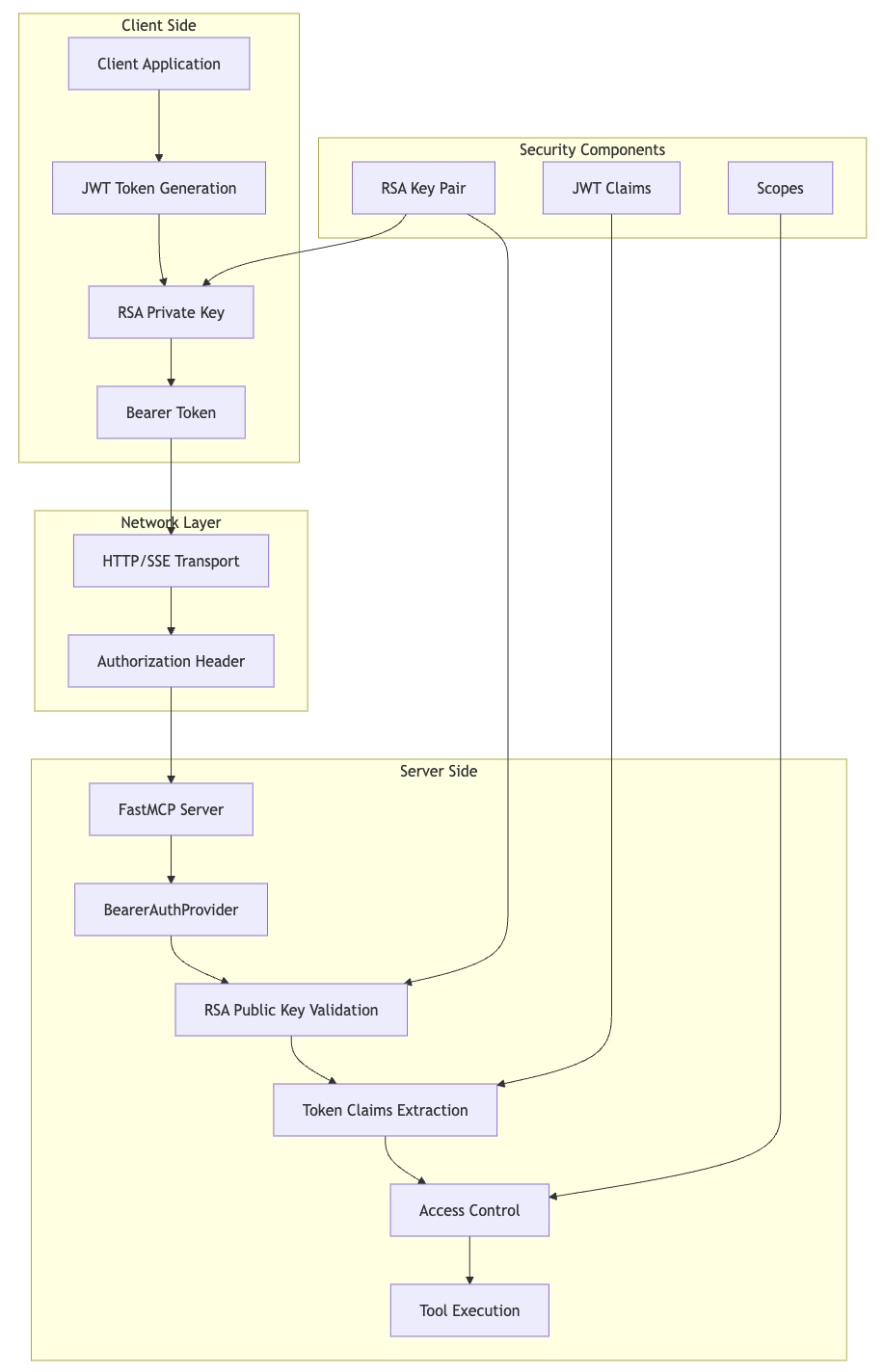

Technical Architecture

Implementation Tutorial

Step 1: Generate RSA Key Pair

The foundation of our authentication system is an RSA key pair. The private key is used for token signing, while the public key validates tokens.

# Generate private key (2048-bit RSA)
openssl genpkey -algorithm RSA -out private.pem -pkeyopt rsa_keygen_bits:2048

# Generate public key from private key
openssl rsa -in private.pem -pubout -out public.pem

Step 2: Server Implementation

The FastMCP server uses the BearerAuthProvider to validate incoming JWT tokens:

from fastmcp import FastMCP, Context
from fastmcp.server.auth import BearerAuthProvider
from fastmcp.server.dependencies import get_access_token, AccessToken
from fastmcp.server.middleware.logging import LoggingMiddleware
from fastmcp.server.middleware.error_handling import ErrorHandlingMiddleware

# Read public key for token validation
with open("public.pem", "r") as public_key_file:
    public_key_content = public_key_file.read()

# Configure authentication provider
auth = BearerAuthProvider(
    public_key=public_key_content,
    issuer="http://localhost:8000",
    audience="my-mcp-server"
)

# Create FastMCP server with authentication
mcp = FastMCP(name="My MCP Server", auth=auth)
mcp.add_middleware(LoggingMiddleware())
mcp.add_middleware(ErrorHandlingMiddleware(
    include_traceback=True,
    transform_errors=True,
))

@mcp.tool()
def greet(name: str) -> str:
    # Extract user information from validated token
    access_token: AccessToken = get_access_token()
    user_id = access_token.client_id
    return f"Hello, {name}! Your userid is {user_id}."

async def main():
    await mcp.run_http_async(transport="streamable-http", log_level="debug")

Step 3: Client Implementation

The client generates JWT tokens using the private key and includes them in requests:

import asyncio
from fastmcp import Client
from fastmcp.client.transports import StreamableHttpTransport
from fastmcp.server.auth.providers.bearer import RSAKeyPair
from pydantic import SecretStr

# Read key pair
with open("private.pem", "r") as private_key_file:
    private_key_content = private_key_file.read()

with open("public.pem", "r") as public_key_file:
    public_key_content = public_key_file.read()

# Create key pair for token generation
key_pair = RSAKeyPair(
    private_key=SecretStr(private_key_content),
    public_key=public_key_content
)

# Generate JWT token
token = key_pair.create_token(
    subject="user@example.com",
    issuer="http://localhost:8000",
    audience="my-mcp-server",
    scopes=["read", "write"]
)

# Create transport with authentication
transport = StreamableHttpTransport(
    "http://localhost:8000/mcp",
    headers={"Authorization": "Bearer " + token},
)

async def call_tool(name: str):
    async with Client(transport=transport) as client:
        result = await client.call_tool("greet", {"name": name})
        print(f"Result: {result.data}")

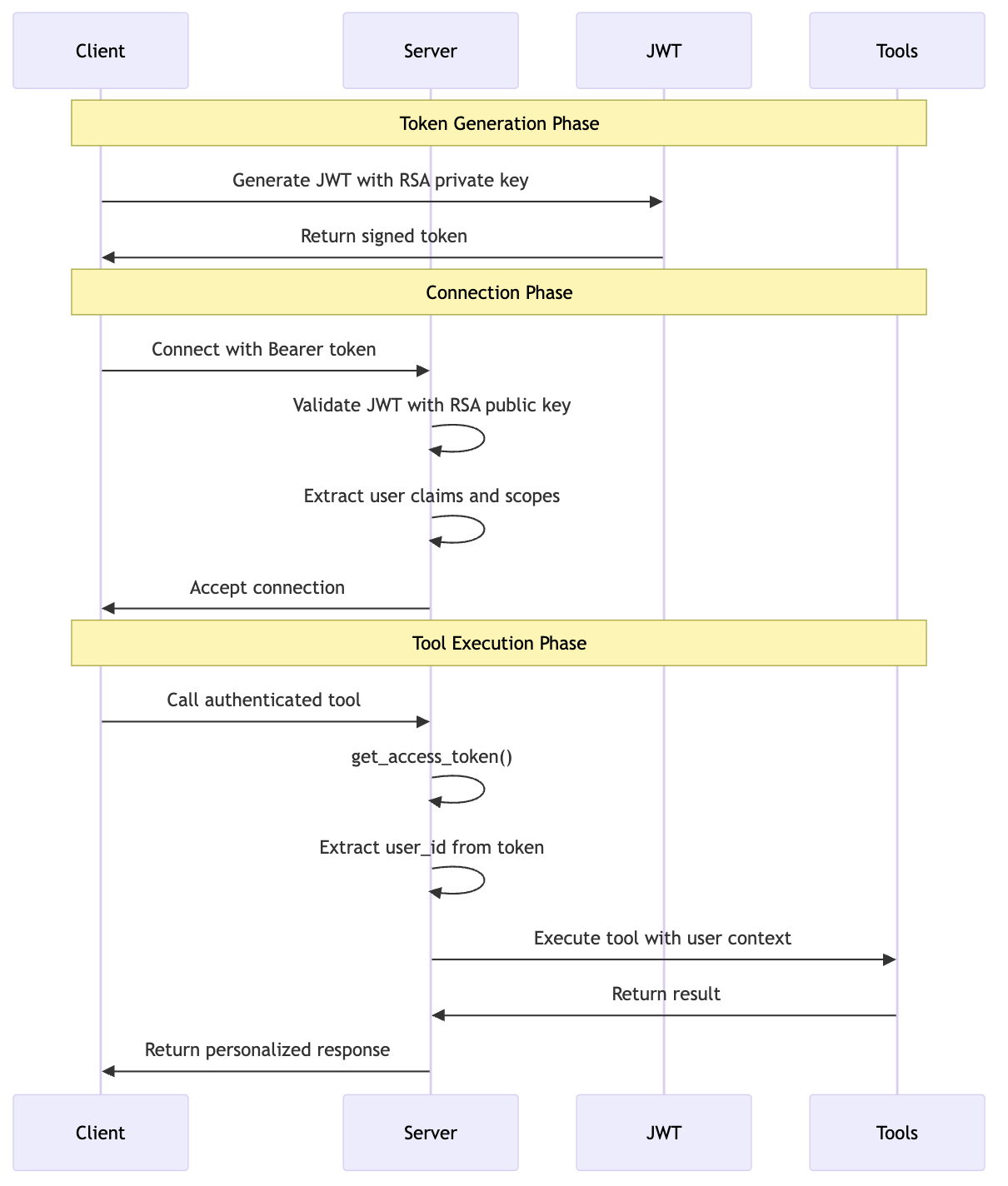

Authentication Flow

Transport Modes

FastMCP supports two transport modes, each with different characteristics. In this blog post, we are focusing on HTTP Streamable mode as our primary example, which provides excellent performance for most use cases.

HTTP Streamable Mode (Primary Example)

# Server
await mcp.run_http_async(transport="streamable-http")

# Client
transport = StreamableHttpTransport(url, headers=auth_headers)

Advantages:

High performance for request-response patterns
Excellent for API-like interactions
Lower latency for individual requests
Better suited for high-frequency tool calls

SSE (Server-Sent Events) Mode

# Server
await mcp.run_http_async(transport="sse")

# Client
transport = SSETransport(url, headers=auth_headers)

Advantages:

Real-time event streaming
Better for long-lived connections
Efficient for continuous data updates
Ideal for monitoring and real-time applications

JWT Token Structure

The JWT tokens contain essential claims for authentication and authorization:

{
  "sub": "user@example.com",
  "iss": "http://localhost:8000",
  "aud": "my-mcp-server",
  "scope": "read write",
  "exp": 1640998800,
  "iat": 1640995200
}

Claims Explanation:

sub (Subject): User identifier
iss (Issuer): Token issuer URL
aud (Audience): Intended recipient
scope: Comma-separated list of permissions
exp (Expiration): Token expiration timestamp
iat (Issued At): Token creation timestamp

Security Considerations

Key Distribution Strategy

Client Side: Each client needs access to the private key for token signing
Server Side: The server only needs the public key for token validation
Shared Key Model: Multiple clients can share the same RSA key pair

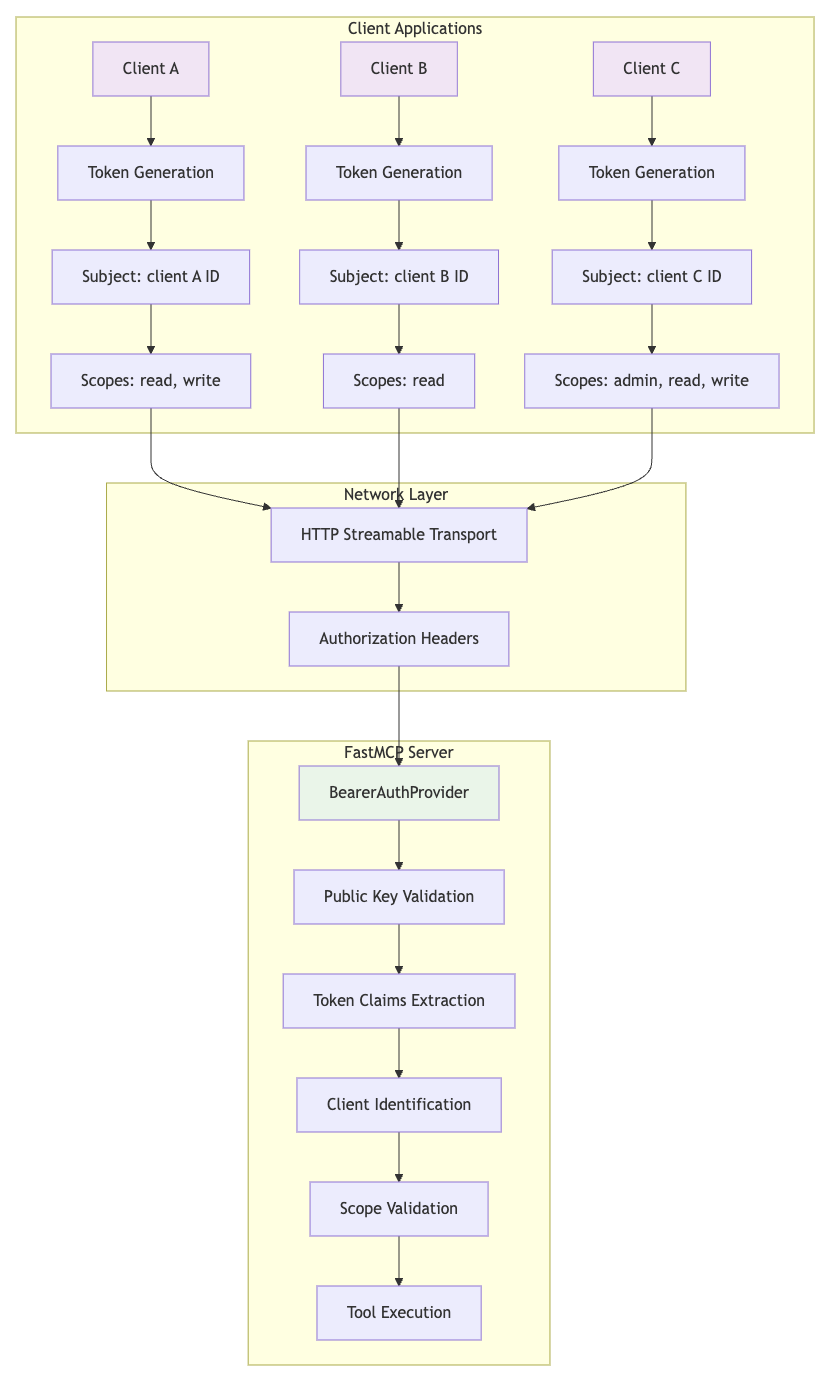

Multi-Client Architecture Best Practices

When multiple clients connect to a single MCP server, they can all share the same RSA key pair. Here’s the recommended approach:

1. Centralized Key Distribution

# All clients use the same private key for token generation
key_pair = RSAKeyPair(
    private_key=SecretStr(shared_private_key),
    public_key=shared_public_key
)

2. Client Identification Strategy

# Each client generates tokens with unique subjects
token_client_a = key_pair.create_token(
    subject="client-a@example.com",  # Unique client identifier
    issuer="http://localhost:8000",
    audience="my-mcp-server",
    scopes=["read", "write"]
)

token_client_b = key_pair.create_token(
    subject="client-b@example.com",  # Different client identifier
    issuer="http://localhost:8000",
    audience="my-mcp-server",
    scopes=["read"]  # Different scopes per client
)

3. Server-Side Client Tracking

@mcp.tool()
def greet(name: str) -> str:
    access_token: AccessToken = get_access_token()
    client_id = access_token.client_id  # e.g., "client-a@example.com"
    scopes = access_token.scopes

    # Log client activity
    print(f"Tool called by client: {client_id} with scopes: {scopes}")

    return f"Hello, {name}! Called by {client_id}"

4. Security Considerations for Multi-Client Setup

Unique Client Identifiers: Use distinct subjects for each client
Scope-Based Access Control: Different clients can have different permission levels
Audit Logging: Track which client performed which actions
Key Distribution Security: Secure distribution of the shared private key
Client Revocation: Implement mechanisms to revoke specific client access

Best Practices

Key Security: Store private keys securely, never in version control
Token Expiration: Set reasonable expiration times (e.g., 1 hour)
Scope Validation: Implement scope-based access control
HTTPS: Use HTTPS in production for secure communication
Key Rotation: Regularly rotate RSA keys
Audit Logging: Log authentication attempts and tool access
Client Isolation: Use unique subjects and scopes for different clients
Key Distribution: Implement secure key distribution mechanisms

Performance Considerations

Token Validation Overhead

JWT validation is fast with RSA public key verification
Consider caching validated tokens for short periods
Use appropriate key sizes (2048-bit RSA recommended)

Transport Mode Selection

HTTP Streamable: Better for high-frequency requests
SSE: Better for real-time updates and long-lived connections

Advanced Features

Custom Scopes

# Server-side scope validation
auth = BearerAuthProvider(
    public_key=public_key_content,
    required_scopes=["admin", "read", "write"]
)

# Client-side scope request
token = key_pair.create_token(
    subject="admin@example.com",
    scopes=["admin", "read", "write"]
)

Multiple Audiences

# Support multiple services
auth = BearerAuthProvider(
    public_key=public_key_content,
    audience=["service-a", "service-b"]
)

Conclusion

FastMCP’s Bearer token authentication provides a robust, secure foundation for AI agent communication. By leveraging RSA key pairs and JWT tokens, developers can implement enterprise-grade security while maintaining the flexibility and performance needed for AI applications.

The dual transport support (HTTP streamable and SSE) ensures compatibility with various deployment scenarios, while the comprehensive middleware system provides logging, error handling, and extensibility.

For production deployments, remember to:

Use HTTPS for all communications
Implement proper key management and rotation
Set up monitoring and alerting for authentication failures
Regularly audit access patterns and token usage

FastMCP’s authentication system strikes the right balance between security and usability, making it an excellent choice for building secure AI applications.

Check out the complete source code and detailed guide here. Happy hacking!
