Tracing LlamaStack Applications with MLflow: SDK vs OTel Collector

As LLM-powered applications grow in complexity, observability becomes essential. You need to understand what your application is doing — what prompts are being sent, what responses come back, how long each call takes, and how many tokens are consumed. MLflow provides a powerful tracing framework that captures all of this, which can be integrated with llamastack for observability.

In this post, we’ll walk through two approaches for exporting LlamaStack traces into MLflow:

1. MLflow SDK — Direct instrumentation using MLflow’s built-in tracing and autologging
2. OTel Collector — Decoupled telemetry pipeline using OpenTelemetry auto-instrumentation and an OTel Collector as the intermediary

By the end, you’ll understand when to use each approach and how to set them up.

MLflow Tracing: A Quick Overview

MLflow is an open-source platform for managing the ML lifecycle. Starting with version 2.14, MLflow introduced GenAI tracing — a first-class feature for capturing LLM interactions including:

• Traces and Spans: Hierarchical representation of operations (API calls, tool invocations, chain steps)
• Token Usage & Latency: Automatic capture of input/output tokens and response times
• Input/Output Logging: Full request and response payloads for debugging
• Web UI: A built-in dashboard for exploring, filtering, and analyzing traces

MLflow also supports ingesting traces via the OpenTelemetry (OTLP) protocol at its /v1/traces endpoint, which opens the door to vendor-neutral instrumentation, more on that in the OTel Collector section.

LlamaStack and Its OpenAI-Compatible API

LlamaStack provides an OpenAI-compatible API, meaning any tooling that works with OpenAI’s chat completions API or responses API also works with LlamaStack. This is key for tracing, we can leverage existing OpenAI instrumentation libraries (both MLflow’s openai.autolog() and OpenTelemetry’s opentelemetry-instrumentation-openai-v2) to capture traces without writing custom code.

Prerequisites

For both approaches, you’ll need:

• Python 3.10+
• A running LlamaStack server (e.g., at http://localhost:8321)
• MLflow >= 3.10 with GenAI extras:

pip install "mlflow[genai]>=3.10" "openai>=2.20.0"

Start the MLflow Tracking Server

Launch a local MLflow server with SQLite as the backend store:

mlflow server \
  --backend-store-uri sqlite:///mlflow.db \
  --default-artifact-root ./mlruns \
  --host 0.0.0.0 --port 5000

The MLflow UI will be available at http://localhost:5000.

Approach 1: Tracing via MLflow SDK

This approach uses MLflow’s native tracing SDK to capture and export traces directly to the MLflow server. It’s the simplest way to get started.

Step 1: Instrument Your Code

Add MLflow tracing to your LlamaStack client code. The example below uses the Responses API (client.responses.create), which is the recommended way to interact with LlamaStack:

import mlflow
import mlflow.tracing as mlflow_tracing
from openai import OpenAI

# Configure MLflow
mlflow.set_tracking_uri("http://localhost:5000")
mlflow.set_experiment("LlamaStack Demo")

# Enable tracing and OpenAI autologging
mlflow_tracing.enable()
mlflow.openai.autolog()

# Create an OpenAI-compatible client pointing to LlamaStack
client = OpenAI(
    base_url="http://localhost:8321/v1",
    api_key="fake",
)

response = client.responses.create(
    model="meta-llama/Llama-3.1-8B-Instruct",
    input="Give a one-sentence description of LlamaStack.",
)
print(response.output_text)

MLflow’s openai.autolog() automatically captures every client.responses.create() call as a trace, including inputs, outputs, token usage, and latency — with zero additional instrumentation code.

Step 2: Run the Application

MLFLOW_TRACKING_URI=http://localhost:5000 \
python your_app.py

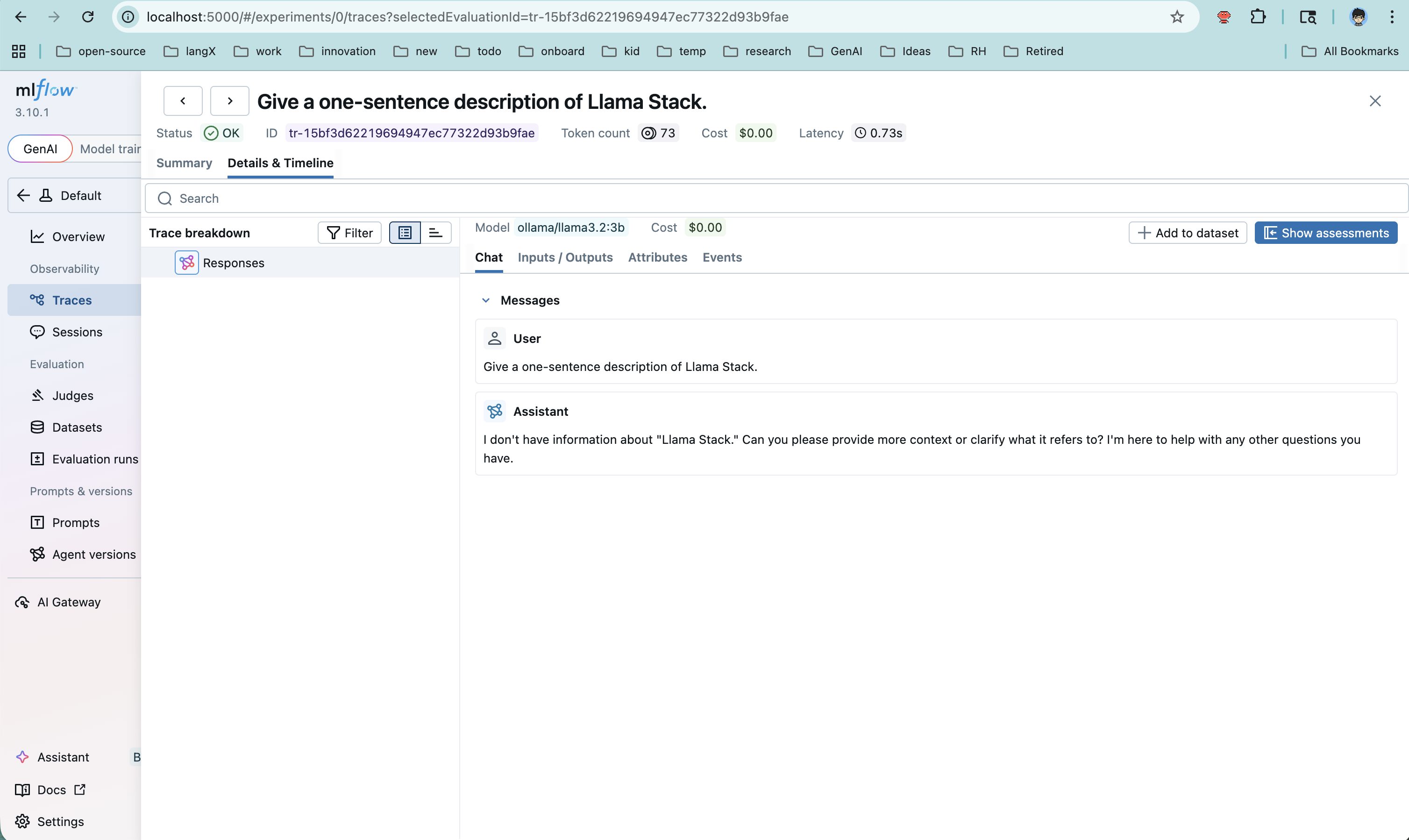

Step 3: View Traces in MLflow

Open http://localhost:5000, navigate to your experiment (“LlamaStack Demo”), and click the Traces tab. You’ll see each request with:

• Full input/output payloads
• Token usage (input, output, total)
• Latency breakdown
• Span hierarchy

Pros and Cons

Aspect	Details
Simplicity	Minimal setup — just a few lines of Python
Rich data	MLflow autolog captures detailed OpenAI-specific metadata
Coupling	Application code depends on mlflow package
Flexibility	Traces go directly to MLflow — no intermediary routing or fan-out

Approach 2: Tracing via OTel Collector

This approach decouples instrumentation from the trace backend. The application uses OpenTelemetry auto-instrumentation to emit spans, which flow through an OTel Collector before being forwarded to MLflow’s OTLP endpoint.

Step 1: Install OpenTelemetry Dependencies

pip install opentelemetry-api \
            opentelemetry-sdk \
            opentelemetry-exporter-otlp \
            opentelemetry-instrumentation-openai

Step 2: Configure the OTel Collector

Create an otel-collector-config.yaml:

receivers:
  otlp:
    protocols:
      http:
        endpoint: 0.0.0.0:4318

exporters:
  otlphttp/mlflow:
    endpoint: http://host.docker.internal:5000
    traces_endpoint: /v1/traces
    tls:
      insecure: true
    headers:
      x-mlflow-experiment-id: "1"

processors:
  batch:
    timeout: 5s

service:
  pipelines:
    traces:
      receivers: [otlp]
      processors: [batch]
      exporters: [otlphttp/mlflow]

Key configuration points:

• receivers.otlp: Accepts OTLP data on port 4318 (HTTP)
• exporters.otlphttp/mlflow: Forwards traces to MLflow’s /v1/traces OTLP endpoint
• x-mlflow-experiment-id: Determines which MLflow experiment receives the traces
• host.docker.internal: Allows the containerized collector to reach the host machine’s MLflow server

Step 3: Run the OTel Collector

docker run -d \
  --name otel-collector \
  -p 4318:4318 \
  -v $(pwd)/otel-collector-config.yaml:/etc/otelcol-contrib/config.yaml \
  otel/opentelemetry-collector-contrib:0.143.1

Step 4: Run the Application with OTel Instrumentation

The key difference here: we use opentelemetry-instrument to wrap the application, and we disable MLflow’s built-in tracing to avoid double-writing:

MLFLOW_ENABLE_TRACING=0 \
OTEL_EXPORTER_OTLP_ENDPOINT=http://localhost:4318 \
OTEL_EXPORTER_OTLP_PROTOCOL=http/protobuf \
OTEL_SERVICE_NAME=llamastack-app \
opentelemetry-instrument python your_app.py

Note that the application code itself does not need any MLflow imports for tracing. The OpenTelemetry auto-instrumentation handles span creation, and the collector handles routing.

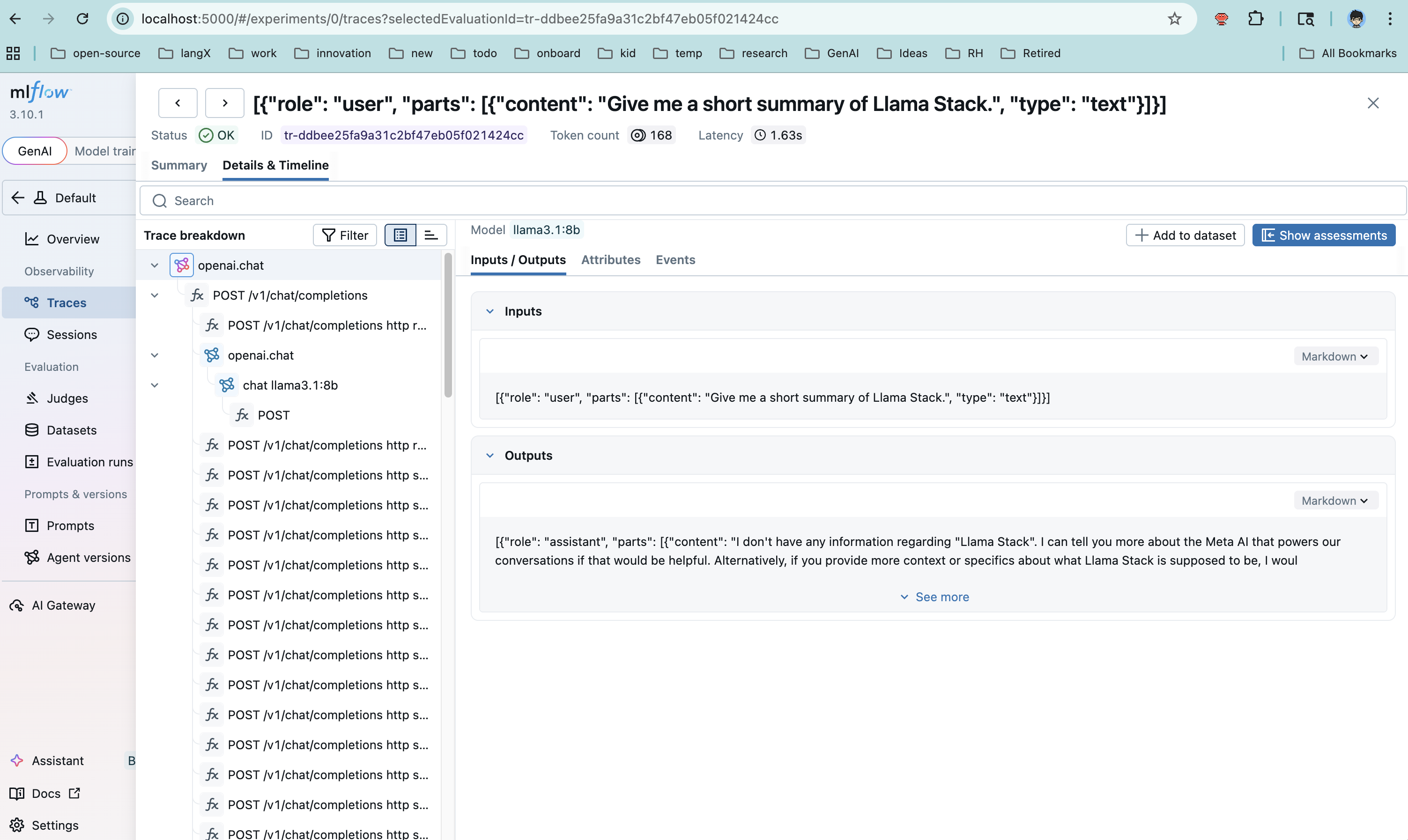

Step 5: Verify Traces

Check that traces are flowing into MLflow:

# Via CLI
MLFLOW_TRACKING_URI=http://localhost:5000 \
mlflow traces search --experiment-id 1

# Or check the database directly
sqlite3 mlflow.db "SELECT count(*) FROM trace_info;"

Then open the MLflow UI at http://localhost:5000 to explore the traces visually.

Pros and Cons

Aspect	Details
Decoupling	App has no MLflow SDK dependency — only standard OTel
Fan-out	Collector can export to multiple backends simultaneously (e.g., Jaeger + MLflow)
Production-ready	OTel Collector provides buffering, retry, and batching
Complexity	Requires running and configuring an additional service (the collector)
Data richness	OTel OpenAI instrumentation may capture different fields than MLflow autolog

Responses API Support

Note: OpenTelemetry auto-instrumentation for the Responses API is not yet available upstream. Progress is tracked in llamastack/llama-stack#5192. In the meantime, Approach 1 (MLflow SDK) fully supports tracing Responses API calls via mlflow.openai.autolog().

Approach Comparison

Criteria	MLflow SDK	OTel Collector
Setup complexity	Low — a few lines of code	Medium — collector config + container
Code coupling	Coupled to mlflow package	No MLflow dependency in app code
Multi-backend support	MLflow only	Fan-out to any OTLP-compatible backend
Buffering & retry	Basic (in-process)	Production-grade (collector handles it)
Best for	Development, prototyping, quick experiments	Production deployments, multi-tool observability stacks
Instrumentation	mlflow.openai.autolog()	opentelemetry-instrument + OTel OpenAI plugin

Bonus: Tracing the LlamaStack Server Itself

Both approaches above trace the client side — the application making calls to LlamaStack. But you can also trace the LlamaStack server using the OTel approach:

OTEL_EXPORTER_OTLP_TRACES_ENDPOINT=http://localhost:5000/v1/traces \
OTEL_EXPORTER_OTLP_TRACES_PROTOCOL=http/protobuf \
OTEL_EXPORTER_OTLP_TRACES_HEADERS="x-mlflow-experiment-id=1" \
OTEL_SERVICE_NAME=llama-stack-server \
opentelemetry-instrument llama stack run starter

This gives you end-to-end visibility: client-side spans showing the request lifecycle, and server-side spans showing internal LlamaStack processing.

Important: MLflow SDK tracing only instruments the client side. The LlamaStack server itself is not instrumented by MLflow, so server-side spans (inference routing, tool execution, etc.) are only visible through OpenTelemetry auto-instrumentation (Approach 2).

Common Gotchas

1. MLflow OTLP endpoint path: Use /v1/traces, not /api/2.0/otlp/v1/traces (the latter returns 404 in MLflow 3.10+).

2. Double-writing: If you enable both MLflow autolog and OTel instrumentation, traces may be written twice. Set MLFLOW_ENABLE_TRACING=0 when using the OTel path.

3. Missing spans with OTel: The opentelemetry-instrument wrapper is required — simply setting OTEL_* environment variables without it won’t produce any spans because no instrumentation is active.

4. Docker networking: When running the OTel Collector in Docker, use host.docker.internal to reach services on the host machine.

5. Time range in UI: If the MLflow UI looks empty, check the time range filter — it may default to a narrow window that excludes your traces.

Conclusion

Both approaches get your LlamaStack traces into MLflow, but they serve different needs:

• Start with the MLflow SDK when you want quick, low-friction observability during development. A few lines of code and you’re tracing.
• Move to the OTel Collector when you need production-grade telemetry infrastructure — decoupled from your application, with the ability to fan out to multiple observability backends.

The good news: since LlamaStack exposes an OpenAI-compatible API, both paths leverage existing, well-maintained instrumentation libraries. You’re not writing custom tracing code — you’re plugging into an ecosystem.

Quick Start With Containers

A pending PR, feat: add MLflow support for LlamaStack, will let you run LlamaStack alongside MLflow, Grafana, and Prometheus in containers with a single command. Once that PR lands, use the telemetry scripts in the LlamaStack repository for the full walkthrough.

References

• MLflow Tracing Documentation
• OpenTelemetry Collector Documentation
• OpenTelemetry OpenAI Instrumentation
